Azure OpenAI Assistant Node

The Azure OpenAI Assistant Node enables you to interact with the Azure OpenAI Assistant API and receive intelligent responses generated by the Azure language model. This node supports the latest version of the Azure OpenAI API, providing access to the latest features and capabilities.

Node Inputs

1. Azure API Key

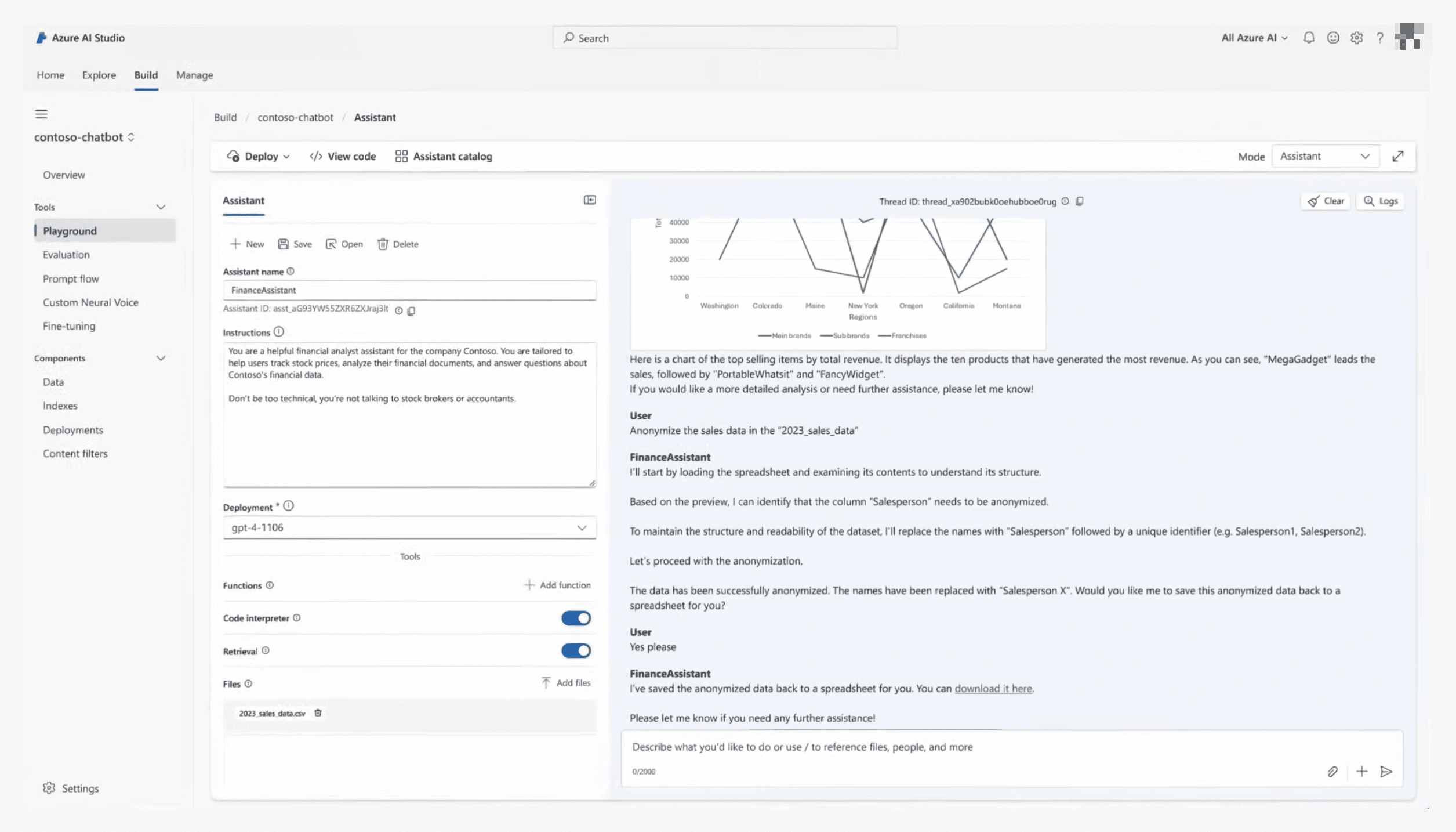

This input field requires your Azure API key for authentication with the Azure OpenAI service. You can obtain the API key from the Azure AI Studio (opens in a new tab).

2. Assistant ID

Enter the ID of the Azure OpenAI assistant you want to use. You need to create and configure the assistant in the Azure OpenAI Studio beforehand.

3. Resource

The name of your Azure resource.

4. User Prompt

This input field is where you enter the prompt or query that you want to send to the AI assistant. This represents the incoming message from the user or client.

5. Thread ID

This optional input allows you to save and share the context of the conversation using a thread ID. The thread ID can be any unique identifier, such as a UUID or a custom string. The chat history belonging to a specific thread ID is retrieved and continued in subsequent interactions. If no thread ID is provided, a new conversation thread is started, and a new thread ID is generated automatically.

6. Instructions

You can use this input to override the default system message or instructions for the AI assistant. This is useful for modifying the assistant's behavior or persona on a per-run basis.

7. Built-in Tools

Select the built-in tools you want the Azure OpenAI assistant to use. The available options are:

• Document Retrieval - for searching and retrieving relevant documents (Note: This feature is not yet supported in Azure)
• Code Interpreter - for analyzing and explaining code snippets

Node Outputs

1. Messages

This output contains the full content of the messages exchanged during the conversation, including an array of text and/or images.

2. Thread ID

This output provides the ID of the conversation thread used for the current interaction. If a new thread was created, a new thread ID is generated and returned. If a thread ID was provided as an input, the same thread ID is returned for reference.

3. Response

This output field contains the AI assistant's response to the user's prompt.

4. Annotations

This output field provides any annotations associated with the message, such as entity recognition or sentiment analysis.
